A special thanks to Geonworks, which publicly shared the plate designs.

Global Specifications:

• Dimensions: 348mm x 137mm x 1.6mm
• Material: FR4
• No edge-plating.

Version Specifications:

Half-Plate F1-8X v1

• Type: Half-Plate, Leaf Spring v1 (ANSI only)
• Top and bottom plated cutouts (plated cutout series)
• Colour: Red
• ENIG finish
• Layout: F12 TKL
• Compatible: F1-8x, F1-8X 722

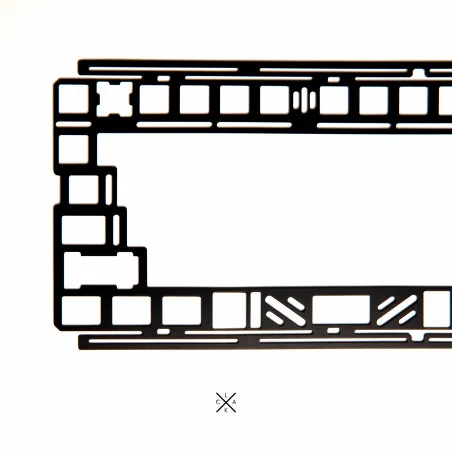

Full-Plate F1-8X v1

• Type: Full Plate, Leaf Spring v1 (ANSI only)
• Top and bottom plated cutouts (plated cutout series)
• Colour: Matte Black
• ENIG finish
• Layout: F12 TKL
• Compatible: F1-8x, F1-8X 722

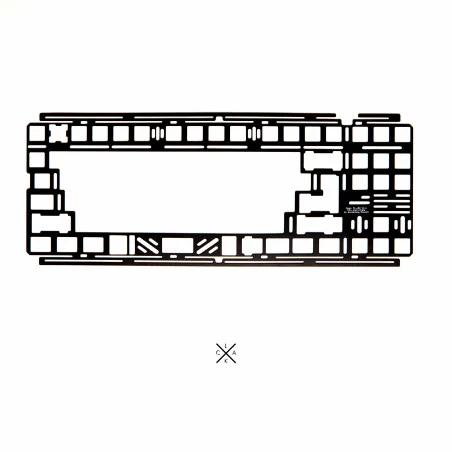

Half-Plate F1-8X v1.1

• Type: Half-Plate, Leaf Spring v1.1 (ANSI and ISO)
• No edge-plating or plated cutouts (black series).
• Colour: Black
• HASL finish
• Layout: F12 TKL
• Compatible: F1-8x, F1-8X 722

You can find also FR4 plates for other Geonworks products like the Frog TKL or Glare TKL in our store. Have fun!
