A special thanks to Geonworks, which publicly shared the plate designs.

These plates were designed by Geonworks.

Global Specifications:

• Dimensions: 286mm x 108mm x 1.6mm
• Material: FR4
• HASL finish with soldermask
• No edge-plating or plated cutouts (black series).

Version Specifications:

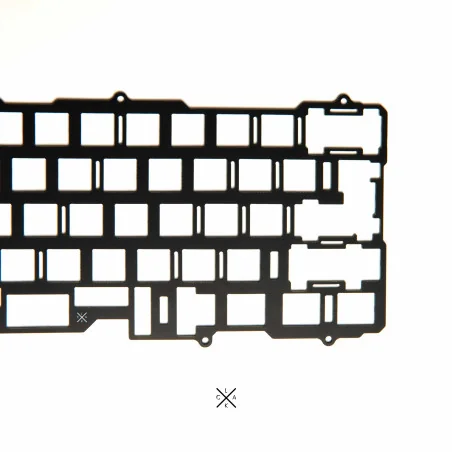

Full-Plate Frog Mini:

• Type: Full Plate, Non-Leaf Spring
• Color: Matte Black
• Layout: ANSI and ISO support
• Compatible: Frog Mini
• Required: Tadpole

Half-Plate Frog Mini:

• Type: Half Plate, Non-Leaf Spring
• Color: Matte Black
• Layout: ANSI and ISO support
• Compatible: Frog Mini
• Required: Tadpole

You can find also FR4 plates for other Geonworks products like the Frog TKL or F1-8X in our store. Have fun!
