A special thanks to TGR, which publicly shared the plate designs.

These plates were designed by doctorboy, from ClackX.

Below, I list the changes regarding the default design:

• Bigger stab cutouts that allow rework/replace the stabs without removing all the switches.

Global Specifications:

• Dimensions: 348mm x 129mm x 1.6mm
• Material: FR4
• FR4 core only (without inner copper layers) with soldermask
• No edge-plating or plated cutouts (black series).

Version Specifications:

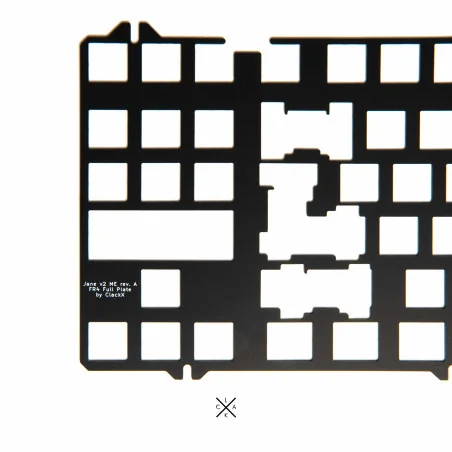

Full-Plate Jane v2 ME:

• Type: Full Plate
• Color: Matte Black
• Layout : F13 TKL
• Compatible: Jane v2 ME, Jane v2 CE, KFE CE

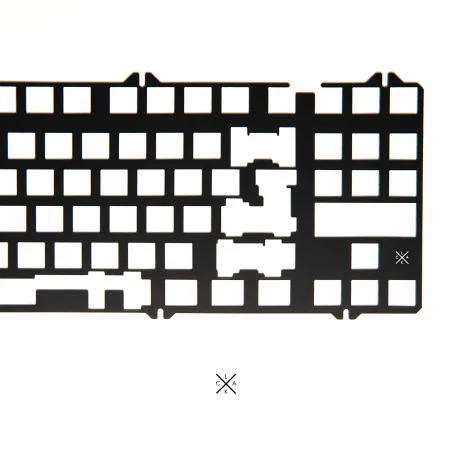

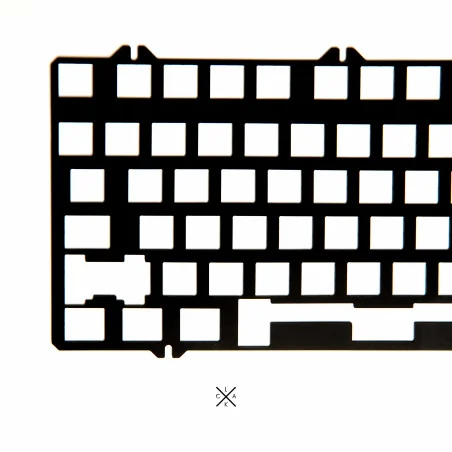

Half-Plate Jane v2 ME:

• Type: Half Plate
• Color: Matte Black
• Layout : F13 TKL
• Compatible: Jane v2 ME, Jane v2 CE, KFE CE

You can find also FR4 plates for other products like the Geonworks Frog TKL or Geonworks Glare TKL in our store. Have fun!
